Cable Specification
01
Product information
Application
Flexible control cable for the interconnection of machines and equipment, or for fixed installations where flexible cables are required.
02

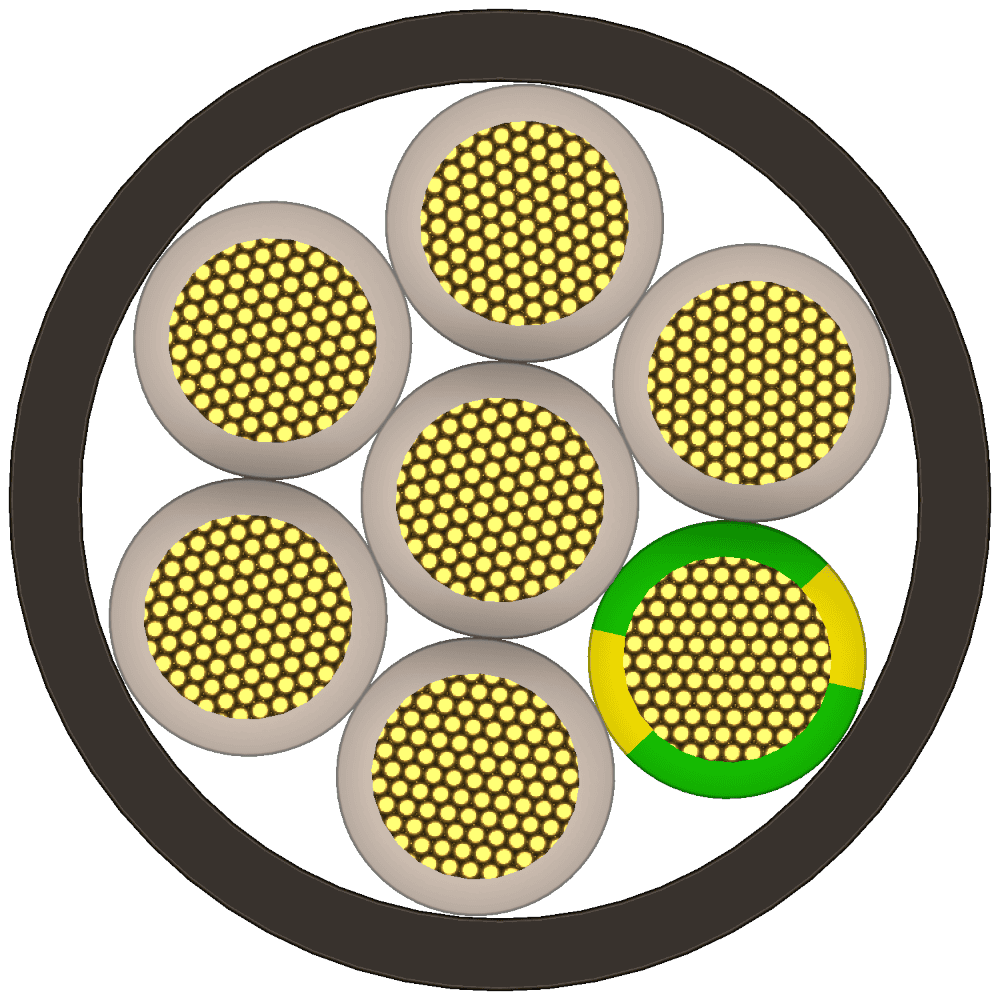

Cable composition
Construction
Conductor: Plain copper, finely stranded Class 5
Insulation: Flexible X-HF-110
Core Colours: White with black numbering plus green/yellow
Laid Up: All cores are laid together with non-hygroscopic fillers and PET tape wrapping
Sheath: Flexible HFS-110-TP, black
03
Technical performance
Properties
| Rated Voltage | 0.6/1kV |
|---|---|
| Operating Temperature | -40°C to 110°C, fixed installation |
| Bending Radius — Fixed | 6 × overall diameter |
| Bending Radius — During Installation | 12 × overall diameter |
04
Available sizes and variants
Configurations
Swipe to view all columns →
| Part No. | Cores × CSA [mm²] |
Current Carry Capacity Unenclosed Touching [A] |
Power Conductor 20°C Max DC Resistance [mΩ/km] |
Nominal Overall Diameter [mm] |
Weight [kg/km] |
|---|---|---|---|---|---|
| CZF03G00150 | 3G1.5 | 24 | 13.3 | 10.5 | 110 |
| CZF05G00150 | 5G1.5 | 24 | 13.3 | 12.2 | 173 |
| CZF07G00150 | 7G1.5 | 24 | 13.3 | 12.8 | 236 |
| CZF09G00150 | 9G1.5 | 24 | 13.3 | 15.3 | 293 |
| CZF11G00150 | 11G1.5 | 24 | 13.3 | 16.3 | 354 |
| CZF13G00150 | 13G1.5 | 24 | 13.3 | 17.0 | 398 |
| CZF16G00150 | 15G1.5 | 24 | 13.3 | 18.8 | 454 |
| CZF21G00150 | 21G1.5 | 24 | 13.3 | 19.7 | 565 |
| CZF26G00150 | 26G1.5 | 24 | 13.3 | 22.1 | 693 |
| CZF31G00150 | 31G1.5 | 24 | 13.3 | 23.8 | 801 |
| CZF03G00250 | 3G2.5 | 32 | 7.98 | 11.8 | 180 |
| CZF05G00250 | 5G2.5 | 32 | 7.98 | 12.6 | 262 |
| CZF07G00250 | 7G2.5 | 32 | 7.98 | 14.7 | 333 |
| CZF09G00250 | 9G2.5 | 32 | 7.98 | 17.6 | 418 |
| CZF11G00250 | 11G2.5 | 32 | 7.98 | 18.9 | 506 |
| CZF13G00250 | 13G2.5 | 32 | 7.98 | 19.8 | 573 |
| CZF16G00250 | 16G2.5 | 32 | 7.98 | 21.9 | 672 |
| CZF21G00250 | 21G2.5 | 32 | 7.98 | 23.1 | 835 |
| CZF26G00250 | 26G2.5 | 32 | 7.98 | 25.5 | 1,039 |
Current ratings are based on AS/NZS 3008.1.1:2017, Table 15, unenclosed touching.
05
Compliance information
Applicable Standards
AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3808 and IEC 60332-1.
All specifications are subject to change without notification.
Technical assistance
Need help selecting the correct cable?
Speak with the Electcables team about technical requirements, product suitability and availability.
