Application
NSGAFÖU is suitable for fixed installation and occasional movement in buildings and outdoor environments where protection against accidental contact is provided when used above 1,000V.
It can be installed in electrical conduits, in and under plaster, and in closed installation ducts. It is also suitable for submerged installations in cooling water, surface water, rainwater, groundwater and seawater to depths of up to 2,000 metres, with water resistance in accordance with AD8.
NSGAFÖU can be installed in switchgear and distribution boards up to 1,000V, including unfused connections.
Ideal for internal switchboard cabling, sub-mains, traction motors, battery banks, generators, stackers and reclaimers, cranes and hoists, and submersible pumps.

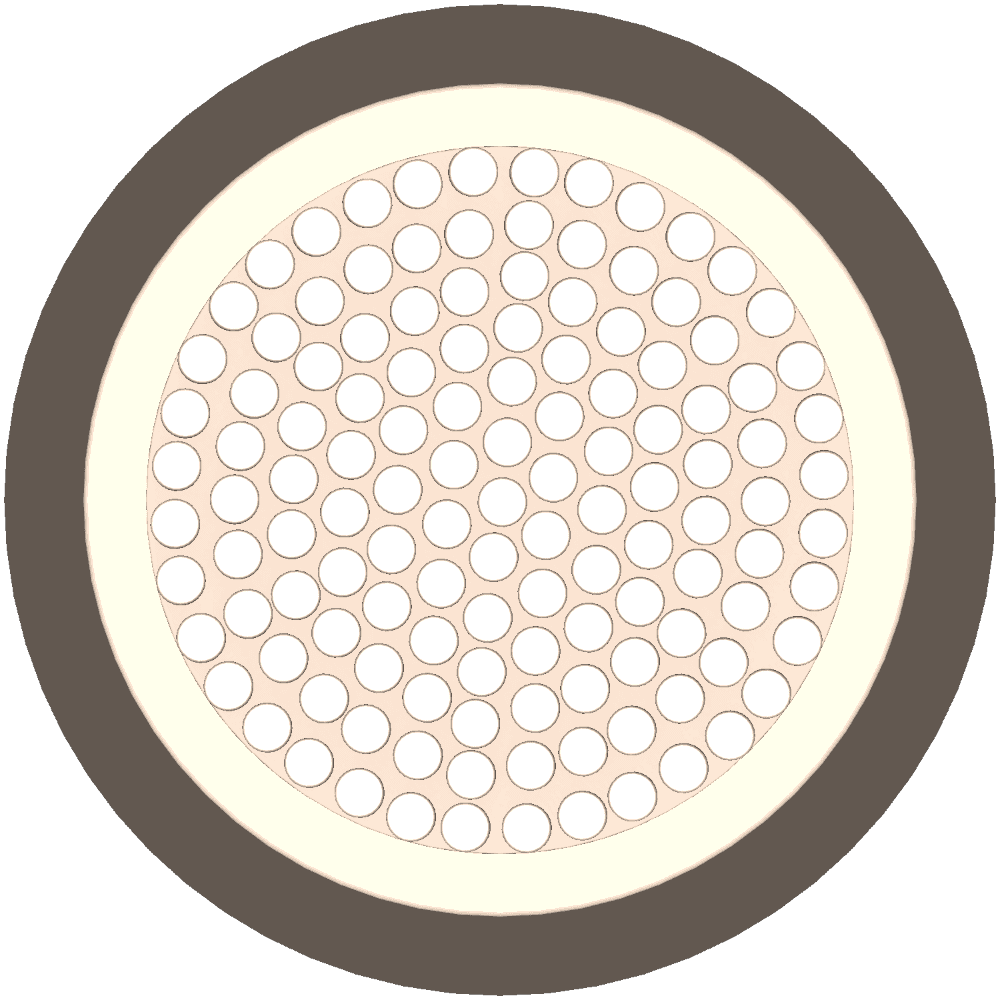

Construction
Conductor: Tinned copper, finely stranded Class 5
Insulation: RE110 elastomer insulation
Sheath: PCP, flame retardant, black, UV stable and suitable for outdoor installation
Properties
Rated Voltage: Uo/U = 0.6/1kV to 3.3kV AC
Maximum Operating Voltage — Three-Phase AC: Uo/U = 2.1/3.6kV
Maximum Operating Voltage — DC: Uo/U = 2.7/5.4kV
AC Test Voltage: 6kV
Operating Temperature: -40°C to 110°C, fixed installation
Bending Radius — Fixed: 6 × overall diameter
Bending Radius — Flexing: 8 × overall diameter
Configurations
| Part No. | Cores × CSA [mm²] |
Current Carry Capacity Unenclosed Touching [A] |
Short Circuit Current Conductor, 1 sec [kA] |
Nominal Overall Diameter [mm] |
Weight [kg/km] |
|---|---|---|---|---|---|
| 5DF2043 | 1 × 1.5 | 26 | 0.21 | 5.7 | 52 |
| 5DF2053 | 1 × 2.5 | 34 | 0.36 | 6.1 | 64 |
| 5DF2063 | 1 × 4.0 | 45 | 0.57 | 6.6 | 81 |
| 5DF2073 | 1 × 6.0 | 57 | 0.86 | 7.1 | 102 |
| 5DF2103 | 1 × 10 | 80 | 1.46 | 8.6 | 160 |
| 5DF2123 | 1 × 16 | 105 | 2.29 | 10.1 | 220 |
| 5DF2133 | 1 × 25 | 139 | 3.58 | 12 | 340 |
| 5DF2143 | 1 × 35 | 172 | 5.01 | 13.2 | 440 |
| 5DF2153 | 1 × 50 | 217 | 7.15 | 14.6 | 590 |
| 5DF2163 | 1 × 70 | 273 | 10.01 | 16.3 | 790 |
| 5DF2173 | 1 × 95 | 329 | 13.59 | 18.8 | 1,020 |
| 5DF2183 | 1 × 120 | 390 | 17.16 | 20.5 | 1,260 |
| 5DF2203 | 1 × 150 | 450 | 21.45 | 22.4 | 1,550 |
| 5DF2213 | 1 × 185 | 516 | 26.46 | 25.2 | 1,910 |
| 5DF2223 | 1 × 240 | 620 | 34.32 | 27.7 | 2,430 |
| 5DF2233 | 1 × 300 | 714 | 42.90 | 31 | 3,040 |
| 5DF2243 | 1 × 400* | 855 | 57.23 | 35.1 | 3,910 |
| 5DF2244 | 1 × 500* | 990 | 71.54 | 39.2 | 4,820 |
| 5DF2245 | 1 × 630* | 1,154 | 90.09 | 44.1 | 6,410 |
Applicable Standards
DIN VDE 0100-520, DIN VDE 0660-500, DIN VDE 0298-3, DIN VDE 0250-602, DIN EN 60228, DIN EN 50363-1, DIN EN 50363-2-1, DIN EN 60332-1-2, DIN EN 50575, DIN EN 60811-404, DIN VDE 0298 and DIN VDE 0298-4.
Note: Cross-sections marked with an asterisk are not covered by the DIN VDE 0250-602 standard.
All specifications are subject to change without notification.
