PROTOMONT HD Screened
Application
PROTOMONT heavy-duty elastomer flexible cables are designed for aggressive environments in open-cut mining and quarries, industrial and construction sites, and agricultural applications where heavy mechanical stresses occur.
The XHD-PCP-90 outer sheath resists hard and abrasive surfaces, while the concentric overall screen provides earth protection and allows fast termination into the plug or appliance.

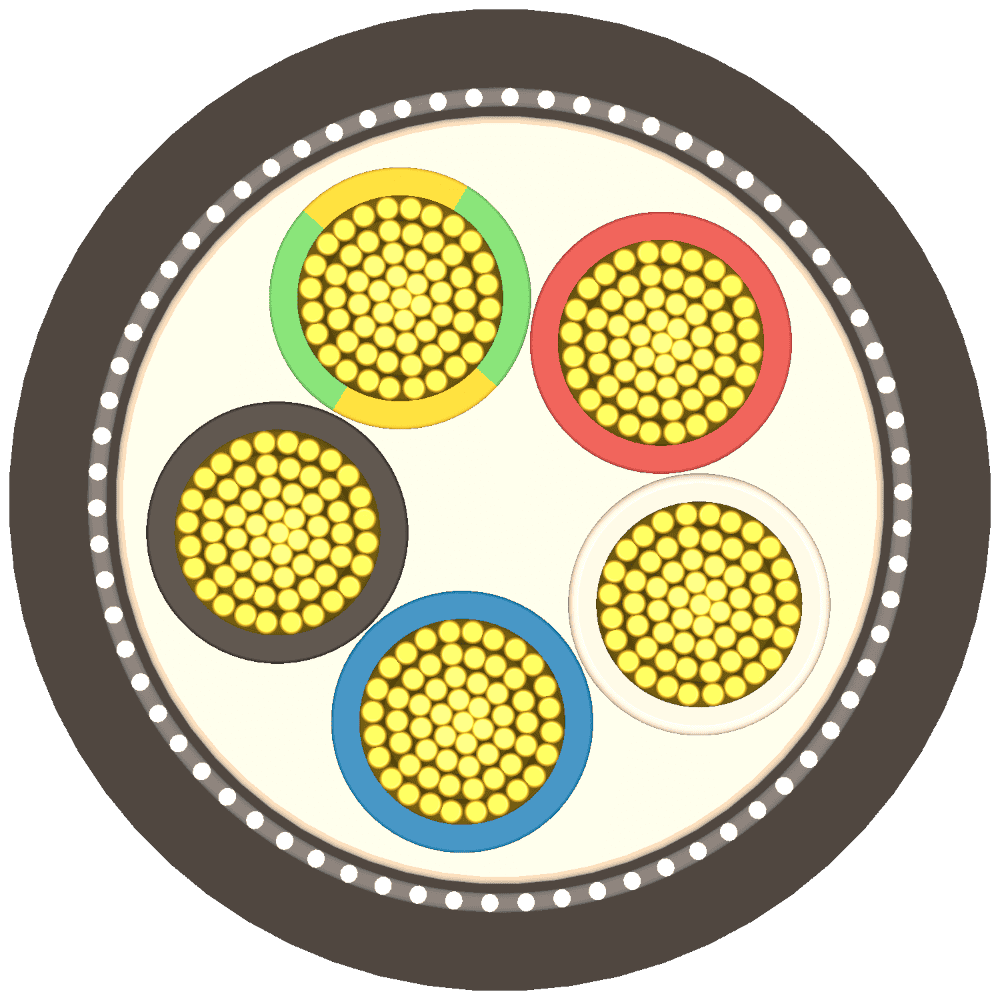

Construction
Conductor: Copper, finely stranded Class 5
Insulation: EPR
Core Colours: Red, white, blue, black and green/yellow
Inner Sheath: EPR
Screen: Concentric closed layer of tinned copper wire spun over the core assembly
Sheath: Special PCP
Properties
| Rated Voltage | Uo/U = 0.6/1kV |
|---|---|
| Maximum Operating Voltage — Three-Phase AC | Uo/U = 0.7/1.15kV |
| Maximum Operating Voltage — DC | Uo/U = 0.9/1.73kV |
| AC Test Voltage | 3kV |
| Operating Temperature | -40°C to 90°C |
| Bending Radius — Fixed | 4 × overall diameter |
| Bending Radius — Flexing | 6 × overall diameter |
Voltage-rating note: This cable uses an EI4 insulation compound in accordance with VDE/IEC and complies with Australian Standard AS/NZS 5000.1 for a voltage rating of 0.6/1kV.
Temperature note: For application temperatures above 90°C, a reduced service life should be considered.
All specifications are subject to change without notification.
Configurations
| Part No. | Cores × CSA [mm²] | Current Carry Capacity Unenclosed Touching [A] | Power Conductor 20°C Max DC Resistance [Ω/km] | Nominal Overall Diameter [mm] | Weight [kg/km] |
|---|---|---|---|---|---|
| 5DL2710 | 5G2.5/2.5 | 26 | 7.98 | 18.1 | 540 |
| 5DL2811 | 5G4/4 | 35 | 4.95 | 20.5 | 680 |
| 5DL2712 | 5G6/6 | 45 | 3.30 | 22.9 | 910 |
| 5DL2713 | 5G10/10 | 62 | 1.91 | 26.8 | 1320 |
| 5DL2714 | 5G16/16 | 83 | 1.21 | 32.0 | 1955 |
| 5DL2715 | 5G25/25 | 110 | 0.78 | 38.9 | 2675 |
Applicable Standards
- AS 1125
- AS 3116
- AS 3191
- DIN VDE 0250 Part 812 for NSSHÖU
- Flame retardant to VDE and MSHA requirements
This cable uses EI4 insulation compound in accordance with VDE/IEC and complies with AS/NZS 5000.1 for the voltage rating of 0.6/1kV.
All specifications are subject to change without notification.
