Cable Specification
Panel Flex 110°C
Single Core Single Insulated Cables 110°C
Low Smoke Halogen Free
01
Product information
Application
For wiring communications equipment, electronic equipment and switchboards.
02
Cable composition

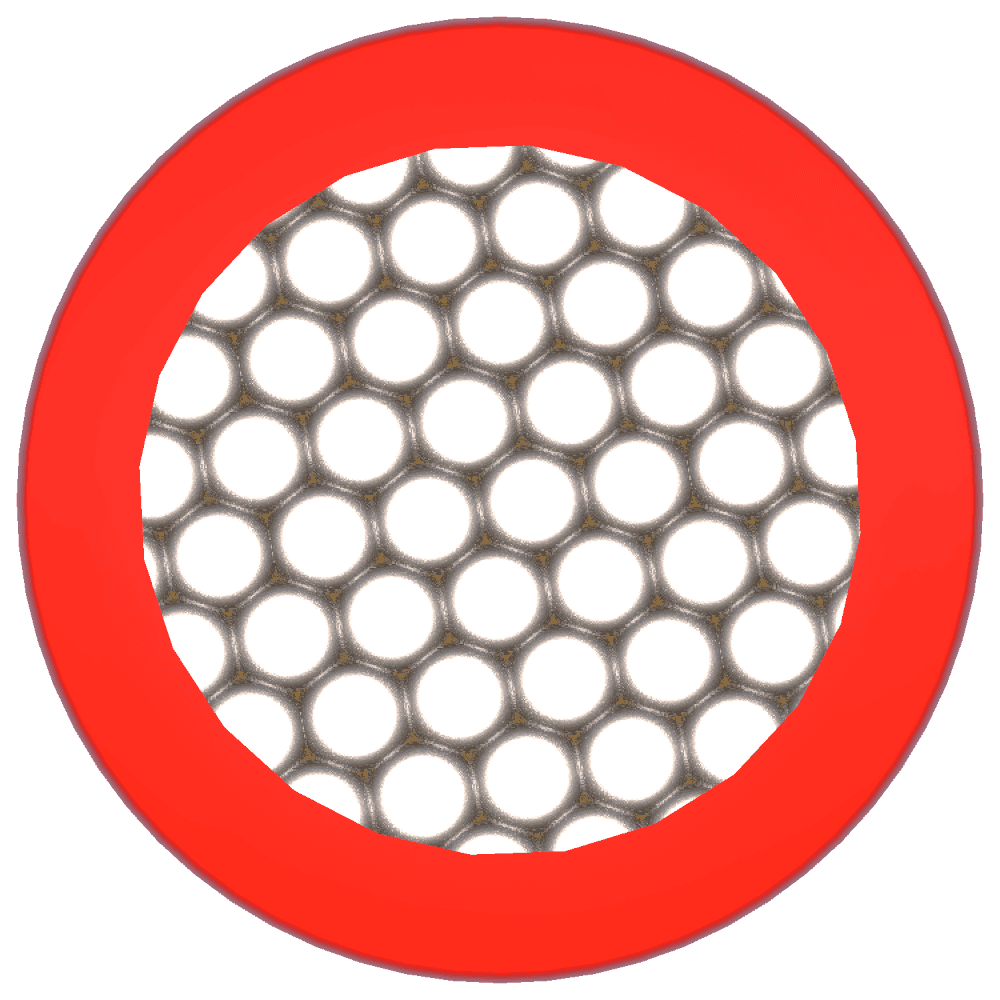

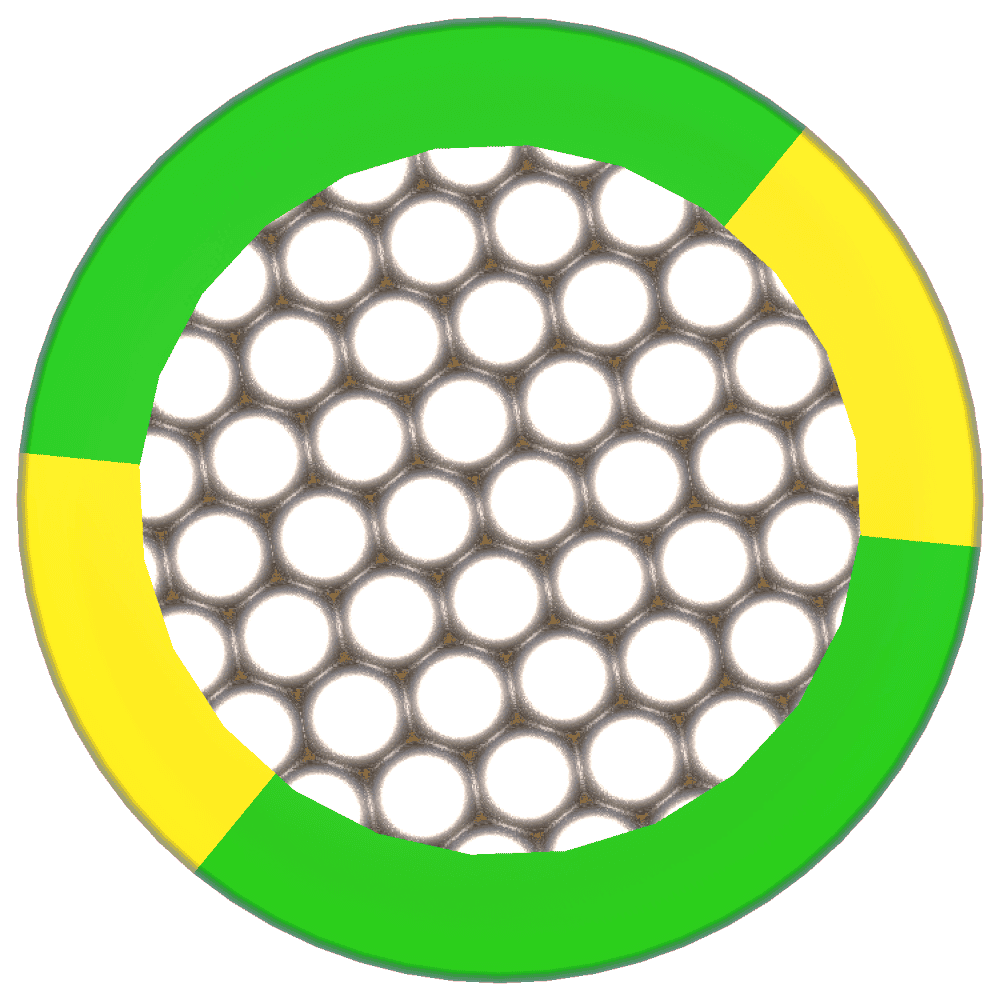

Construction
Conductor: Finely stranded Class 5 copper; tinned copper from 0.5mm² to 6mm² and plain copper from 10mm² and above
Insulation: Flexible X-HF-110, available in multiple colours
03
Technical performance
Properties
| Rated Voltage | 0.6/1kV |
|---|---|
| Operating Temperature | -40°C to 110°C, fixed installation |
| Bending Radius — Fixed | 6 × overall diameter |
| Bending Radius — During Installation | 10 × overall diameter |
04
Available sizes and variants
Configurations
Swipe to view all columns →
| Part No. | Cores × CSA [mm²] |
Current Carry Capacity Unenclosed Touching [A] |
Conductor 20°C Max DC Resistance [mΩ/km] |
Nominal Overall Diameter [mm] |
Weight [kg/km] |
|---|---|---|---|---|---|
| SZF01X00050 | 1 × 0.5 | 14** | 40.1 | 2.40 | 11 |
| SZF01X00075 | 1 × 0.75 | 18** | 27.7 | 2.55 | 12 |
| SZF01X00100 | 1 × 1.0 | 21 | 19.5 | 2.70 | 16 |
| SZF01X00150 | 1 × 1.5 | 26 | 13.7 | 3.15 | 21 |
| SZF01X00250 | 1 × 2.5 | 34 | 8.21 | 3.50 | 31 |
| SZF01X00400 | 1 × 4.0 | 45 | 5.09 | 4.00 | 47 |
| SZF01X00600 | 1 × 6.0 | 57 | 3.39 | 4.70 | 66 |
| SZF01X01000 | 1 × 10 | 80 | 1.96 | 5.60 | 105 |
| SZF01X01600 | 1 × 16 | 105 | 1.24 | 6.95 | 166 |
| SZF01X02500 | 1 × 25 | 139 | 0.79 | 8.65 | 249 |
| SZF01X03500 | 1 × 35 | 172 | 0.56 | 9.90 | 347 |
| SZF01X05000 | 1 × 50 | 217 | 0.39 | 11.55 | 480 |
| SZF01X07000 | 1 × 70 | 273 | 0.28 | 13.55 | 679 |
| SZF01X09500 | 1 × 95 | 329 | 0.20 | 15.85 | 878 |
| SZF01X12000* | 1 × 120 | 390 | 0.16 | 17.45 | 1,140 |
| SZF01X15000* | 1 × 150 | 450 | 0.12 | 20.1 | 1,420 |
| SZF01X18500* | 1 × 185 | 516 | 0.10 | 22.5 | 1,784 |
| SZF01X24000* | 1 × 240 | 620 | 0.08 | 25.4 | 2,309 |
Current ratings are based on AS/NZS 3008.1.1:2017, Table 9, unenclosed touching. *Stocked as green/yellow sheath only. **Manufacturer’s recommendation; not covered by AS/NZS 3008.1.1:2017.
05
Compliance information
Applicable Standards
AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3808 and IEC 60332-1.
Colour Codes
| RD | Red | WE | White | BE | Blue |
|---|---|---|---|---|---|
| BK | Black | EA | Green/Yellow | GY | Grey |
| OE | Orange | VT | Violet | BN | Brown |
| GN | Green | PK | Pink | YW | Yellow |
| LB | Light Blue | OD | Orange/Red | OB | Orange/Black |
| BW | Black/White | ||||
